1.How to Reduce EMI Shield Can Cost by 30%: DFM & Stamping Guide

For procurement managers and RF engineers, the EMI shield can is a paradox: a tiny line item that can derail an entire project with EMC failures, tooling waste, or production delays. At Gleamco, we have spent over 50 years (established 1974) helping OEMs across automotive, telecommunications, consumer electronics, and medical industries cut shielding cover costs by 20–35%—while passing CE, FCC, and AEC-Q200 on the first attempt. This guide shows you exactly how.

Where Is Your Shield Can Budget Actually Going?

Before you can cut costs, you need to understand the cost structure. Here is a typical breakdown for a tinplate shield can (50,000 pcs/month, 20×20×10 mm, t=0.2 mm):

[Table — paste HTML table from file, or use this markdown version:]

| Cost Component | Share | What Drives It Up |

|—|—|—|

| Raw Material (sheet metal) | 28% | Material grade, plating thickness |

| Tooling (amortized) | 22% | Die complexity, cavity count |

| Stamping Production | 25% | Cycle time, scrap rate |

| Plating & Surface Treatment | 12% | Gold flash, selective plating |

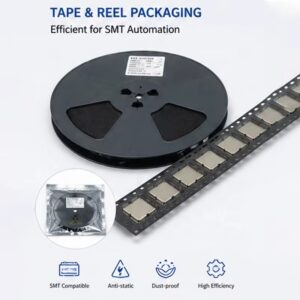

| Packing & Logistics | 8% | Anti-oxidation, reel vs tray |

| Quality Inspection (FAI/CPK) | 5% | Coplanarity checks, salt spray |

Key insight: Material + tooling + production = 75% of your cost. This is where DFM (Design for Manufacturability) delivers the biggest savings. At Gleamco, our vertically integrated in-house tooling—built with premium mold materials SKH9, ASP60, and tungsten carbide—significantly lowers tooling costs and shortens lead times, directly attacking that 22% slice of your budget.

2. Material Selection: The Fastest Win

Many engineers default to brass or copper for “better shielding.” But for the majority of applications below 3 GHz, tinplate (SPTE) offers 90% of the performance at 40% of the cost. At Gleamco, we stock and process tinplate, nickel silver, brass, copper, beryllium copper, stainless steel, and aluminum—so you get an unbiased recommendation, not a markup.

| Material | Relative Cost | Shielding @1GHz | Best Application |

|—|—|—|—|

| Tinplate (SPTE) | 1.0 (baseline) | 35–45 dB | IoT, POS, Consumer Electronics |

| Nickel Silver | 1.4× | 40–50 dB | GPS, RF Modules |

| Brass | 2.0× | 45–55 dB | >3 GHz, Premium RF |

| Copper | 2.5× | 50–60 dB | mmWave, Lab Equipment |

| Stainless Steel | 1.6× | 30–40 dB | Harsh Environment, Auto ECU |

Gleamco DFM Tip: Unless you are operating above 3 GHz, switch to tinplate. This single change often saves 30–40% on material costs without affecting EMC compliance. For applications requiring solderability and oxidation resistance, nickel silver is the sweet spot—and for high-conductivity shielding, brass with selective gold flash on grounding tabs gives you premium performance without plating the entire part.

3. Stamping vs CNC: Total Cost of Ownership

The single biggest cost mistake we see at Gleamco: buyers CNC-machine thousands of pieces because they never asked about stamping tooling. Or conversely, they invest in a $5,000 die for a design that changes three times during NPI. With 50+ years of tooling expertise and a capacity of 300 die sets per year, we help you navigate this transition strategically.

Decision Framework

1. Quantity < 500 pcs → CNC 3-axis to 6-axis: No tooling. Sample in 3–5 days. Perfect for prototypes and design validation.

2. Quantity 500–5,000 pcs → CNC first, then evaluate: If the design is frozen, invest in a single-cavity die.

3. Quantity > 5,000 pcs/month → Progressive die stamping: Tooling pays for itself in 2–4 months. Gleamco operates 25-ton to 200-ton high-speed automated presses.

4. Quantity > 100,000 pcs/month → Multi-cavity progressive die: Lowest unit cost. We routinely produce up to 90 million stamping parts per year.

| Quantity | CNC (No Tooling) | Progressive Stamping |

|—|—|—|

| 1,000 pcs | $1.20/pc | $0.80/pc (Tooling: $800) |

| 10,000 pcs | $0.20/pc | $0.1/pc |

| 100,000 pcs | — | $0.03/pc |

The Gleamco Strategy: Start with CNC prototypes (we have 50+ CNC machines, 3 to 6-axis, ±0.005mm tolerance) to validate the footprint. Once frozen, transition to progressive stamping with in-house tooling. This avoids paying for tooling on a design that might change—and ensures you never pay CNC prices for mass production.

4. Tolerance Optimization: Stop Over-Paying

Over-specifying tolerance is the silent budget killer. We routinely see drawings calling out ±0.02 mm on a shield can that only needs ±0.05 mm. At Gleamco, our stamping capabilities reach ±0.01 mm, but we will be the first to tell you when you do not need it.

| Tolerance | Cost Multiplier | When You Actually Need It |

|—|—|—|

| ±0.05 mm | 1.0× (baseline) | 90% of consumer electronics |

| ±0.03 mm | 1.3× | Automotive, medical |

| ±0.02 mm | 1.6× | High-frequency RF, tight PCB pitch |

| ±0.01 mm | 2.5× | Aerospace, mmWave |

Focus on Coplanarity: The only tolerance that truly affects SMT yield is coplanarity—how flat the bottom edge is after stamping and reflow. Standard control at Gleamco is ≤0.1 mm; high-precision ≤0.05 mm. Do not pay for ±0.02 mm wall tolerance if coplanarity is the real issue—address coplanarity directly.

5. Vent Hole Design: Balance EMC and Heat

Vent holes are necessary for heat dissipation and solder outgassing, but poorly designed vents create EMI leaks. The key is hole size vs wavelength.

– Rule: Hole diameter ≤ λ/40 at the highest frequency of concern.

– For 1 GHz: Holes ≤ 7.5 mm

– For 2.4 GHz (WiFi/Bluetooth): Holes ≤ 3.1 mm

– For 5 GHz (5G WiFi): Holes ≤ 1.5 mm

Cost-Saving Tip: Standard round holes are punched during the stamping stroke at no extra cost. Slots and custom shapes require secondary operations—avoid them unless absolutely necessary. Position vents away from the RF source side; put the densest vent pattern on the opposite wall.

6. One-Piece vs Two-Piece: Choose the Right Shield Architecture

At Gleamco, we manufacture both one-piece and two-piece shield cans. The choice impacts both cost and serviceability:

– One-Piece (Stamped Lid): Lower tooling cost, simpler SMT placement, better for space-constrained designs. Ideal for high-volume consumer electronics.

– Two-Piece (Frame + Snap-On Lid): Allows rework access to components after shielding. Slightly higher piece cost but invaluable for prototypes and field-serviceable products.

– Multi-Cavity Shield: One can with internal partition walls covering 3–4 RF sections. Reduces component count by 30–50% and lowers tooling cost (one die vs three).

Gleamco Tip: If your PCB has multiple isolated RF sections, merging them into a single multi-cavity shield with shared ground ring can cut total cost by 25–40%.

7. DFM Checklist: 10 Questions Before You Send the Drawing

Use this checklist when submitting an RFQ to Gleamco. Our engineering team reviews every drawing within 24 hours and will answer all 10 without hesitation:

1. Can we switch from brass/copper to tinplate without EMC risk?

2. Are vent holes ≤ λ/40 at the target frequency?

3. Can we relax tolerances to ±0.05 mm?

4. Can separate cans be merged into a multi-cavity design?

5. Is coplanarity specified separately from wall tolerance?

6. Are draft angles included for deep-drawn cans (≥1° per side)?

7. Is the material width aligned with standard coil sizes?

8. Can plating be simplified (e.g., tin instead of gold flash)?

9. Is the volume forecast stable enough to justify progressive tooling?

10. Do you offer in-house CNC prototyping and stamping under one roof?

8. Case Study: 34% Cost Reduction for an IoT Gateway

Client: Shenzhen-based IoT company, 868 MHz + 2.4 GHz dual-band gateway.

Original Design: Brass shield can, 0.3 mm wall, ±0.02 mm tolerance, gold flash on all surfaces. CNC machining at 2,000 pcs/month. Unit cost: $2.85.

Gleamco DFM Actions:

1. Switched to tinplate (SPTE, 0.2 mm); applied selective gold flash only to 4 grounding tabs.

2. Relaxed tolerance to ±0.05 mm; specified coplanarity ≤0.08 mm.

3. Merged 2 separate cans into 1 dual-cavity shield (shared frame).

4. Transitioned to progressive die stamping (2-cavity die, $2,800 tooling, built in-house in 12 days).

| Metric | Before | After | Change |

|—|—|—|—|

| Material | Brass 0.3 mm | Tinplate 0.2 mm | −52% |

| Production | CNC | Progressive Stamping | −68% |

| Plating | Full gold flash | Selective gold (4 tabs) | −45% |

| Tooling | $0 | $2,800 (amortized) | Paid off in 2.5 mo |

| Total Unit Cost | $2.85 | $1.88 | −34% |

| EMC Test | Passed CE/FCC | Passed CE/FCC | ✅ No regression |

9. Frequently Asked Questions

H3: Q: Will switching from brass to tinplate really not hurt EMC performance?

A: For applications below 3 GHz with proper grounding, tinplate (0.2 mm) provides 35–45 dB shielding effectiveness—more than enough for CE/FCC. The 5–10 dB difference vs brass rarely affects pass/fail.

H3: Q: How long does stamping tooling take at Gleamco?

A: Standard progressive dies take 10–15 working days from drawing approval. Simple single-cavity dies can be ready in 7 days. We design and build 100% of our dies in-house using SKH9, ASP60, and tungsten carbide.

H3: Q: What is your MOQ for custom shield cans?

A: We support CNC prototypes from 1 piece and stamping runs from 1,000 pieces. Our annual capacity reaches 300 die sets and 90 million stamping parts.

H3: Q: Do you provide DFM feedback before quoting?

A: Yes. Every RFQ receives a written DFM review within 24 hours, including material, tolerance, vent design, and tooling recommendations.

H3: Q: What tolerances can Gleamco achieve?

A: Stamping: ±0.01 mm. CNC machining: ±0.005 mm. Coplanarity: ≤0.1 mm standard, ≤0.05 mm on request. All verified by CMM (Coordinate Measuring Machine) with 0.3-micron accuracy.

10. Your Cost-Reduction Roadmap

Reducing shield can costs by 30% is not about finding a cheaper factory—it is about making the right DFM decisions at the right stage:

1. Prototype Stage: CNC machining for speed and flexibility (Gleamco: 50+ CNC machines, 3–6 axis, ±0.005 mm).

2. NPI Stage: Freeze the design, get DFM feedback, invest in smart tooling (Gleamco: in-house die design with SKH9/ASP60/carbide).

3. Mass Production: Progressive stamping with optimized material and tolerance (Gleamco: 200+ ton presses, 90M parts/year capacity).

As a precision metal stamping and CNC machining factory since 1974, Gleamco is ISO 9001 and IATF 16949 certified, RoHS compliant, and supports you from the first CNC sample to 80 million pieces per year—all under one roof at our 50,800 m² facility in Dongguan, China.
